RS991 Eddy Current Sensor Displacement Transmitter
Your location：> Home> Products> Eddy current two-wire displacement transmitter> RS991 Eddy Current Sensor Displacement Transmitter
RS991 Eddy Current Sensor Displacement Transmitter

Substitute the Park Jung Su 991 Displacement Transmitter (NSV)


Details

Product Details

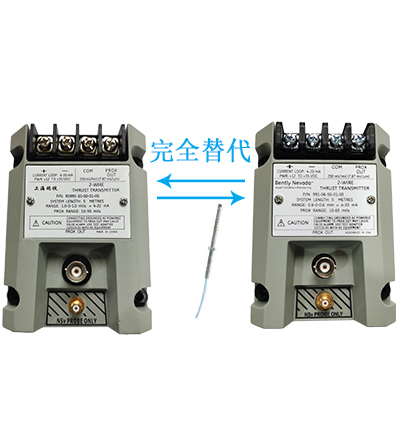

■RS991 Eddy Current Sensor Displacement Transmitter completely substitutes Bently991 displacement transmitter. It is mainly used for measuring shaft displacement of rotating equipment such as steam turbine and air compressor. It can be directly connected with DCS and PLC (+24V power supply and 4-20mA output).

■ Suitable for temperature difference range of-35 C ~+85 C



  Technical parameters of RS991 Eddy Current Sensor Displacement Transmitter are as follows


■ Power supply: +12V～+35VDC

■ Frequency response: 5Hz～6000Hz（0～-3dB）

■ RS9000NSv probe and extension cable connected with REVIS are completely compatible with Bently 3300XL NSv probe and extension cable; RS9000XL probe and extension cable connected with Ruishi are completely compatible with Bently 3300XL probe and extension cable

■ Output mode: Two-wire system, direct output of 4~20mA, corresponding to full displacement range

■ Bently and Ruishi Φ5mm probes can be interchanged at will

■ Measuring range: 0.6-0-0.6mm; 25-0-25mi

■ Load resistance: 500Ω
