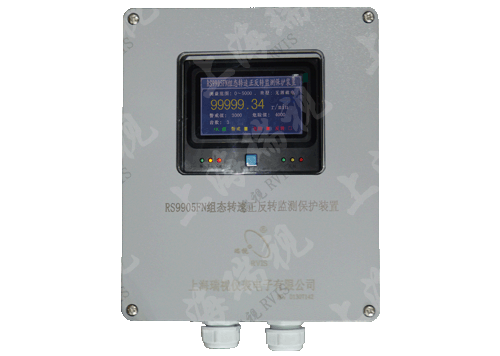

RS9905FN configuration speed positive and negative rotation monitoring and protection device (RS9001FN configuration speed positive and negative rotation monitoring and protection device) is a high-precision and high-reliability speed positive and negative rotation protection device (instrument), which can measure any speed positive and negative rotation in the range of 0.2Hz ~ 20KHz, and can be equipped with eddy current sensors, passive magnetoelectric sensors and active magnetoelectric sensors A surname; Commonly used to measure the rotation speed of 3 teeth reverse monitoring protection. The monitoring protection device (protection instrument) can be configured to set speed measurement range, alarm value, relay (overspeed, reverse) working mode, relay (overspeed, reverse) output logic, etc. Standard analog output (4 ~ 20mA or 1 ~ 5VDC), can be directly connected to PLC, DCS, DAS and other industrial control systems.

Main monitoring function

■ Normal speed monitoring protection

■ Abnormal inversion monitoring protection

Matching sensor

■ Active dual magnetoelectric sensor

■ Active magnetoelectric sensor

■ Eddy current sensor

■ Passive magnetoelectric sensor

Technical specification

■ Full isolation of input and output signals;

■ Normal speed monitoring protection, abnormal reverse monitoring protection

■ Configuration function selection: sensor selection, range selection, warning/danger value setting, relay (overspeed, reverse) alarm mode/alarm delay;

■ Normal overspeed relay alarm function, abnormal reverse relay alarm function;

■ The minimum measurement accuracy can reach 0.2Hz;

■ Sensor power supply:

-24V±1V(eddy current sensor power supply limit 30mA, prevent ignition),

+24V±1V(active magnetoelectric sensor power supply);

■ Diagnostic signal :BNC connector or terminal BUF output;

■ Output mode :4~20mA(maximum load 500Ω) or 1~5VDC;

■ Communication configuration between MiniUSB and PC;

■ Host computer real-time status monitoring function, real-time display of data waveform, rod diagram, alarm information;

■ Working voltage :90V~260VAC.
